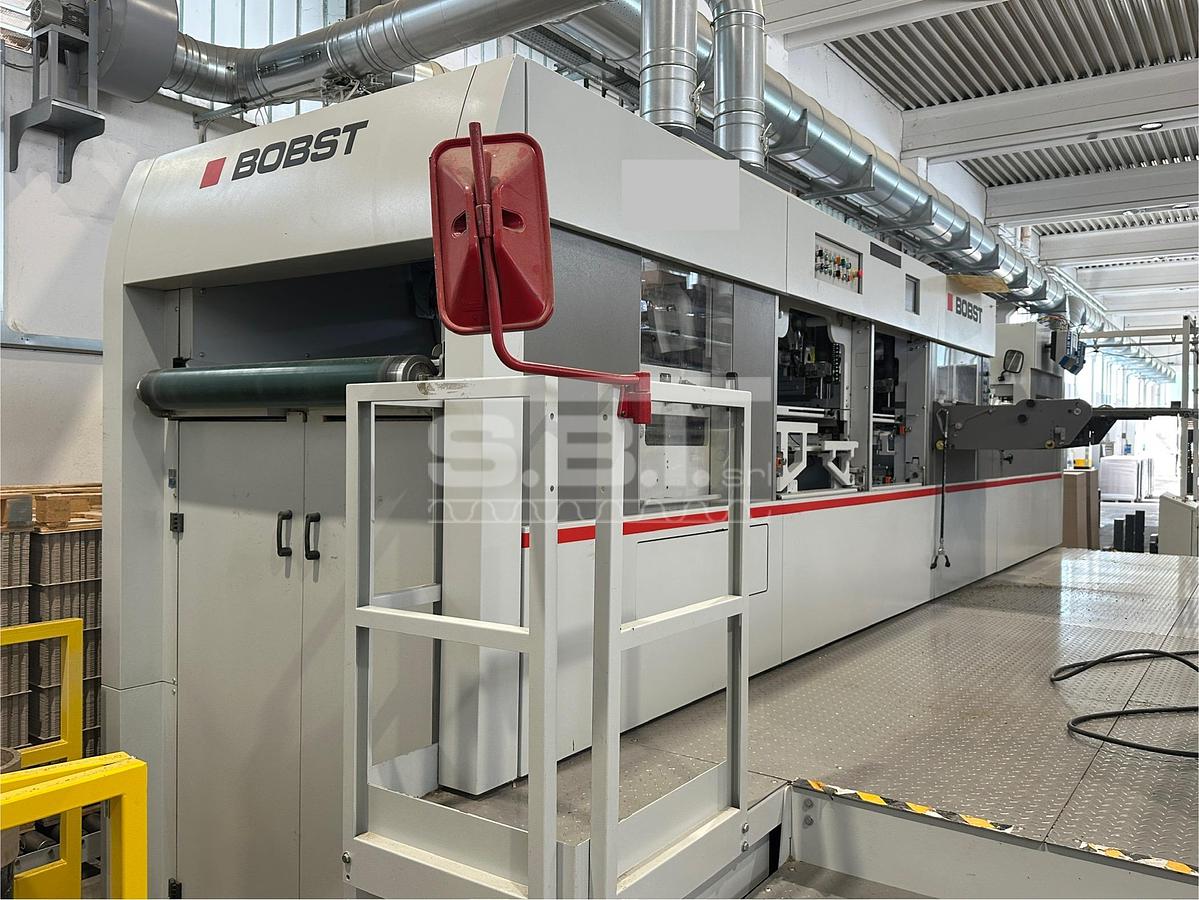

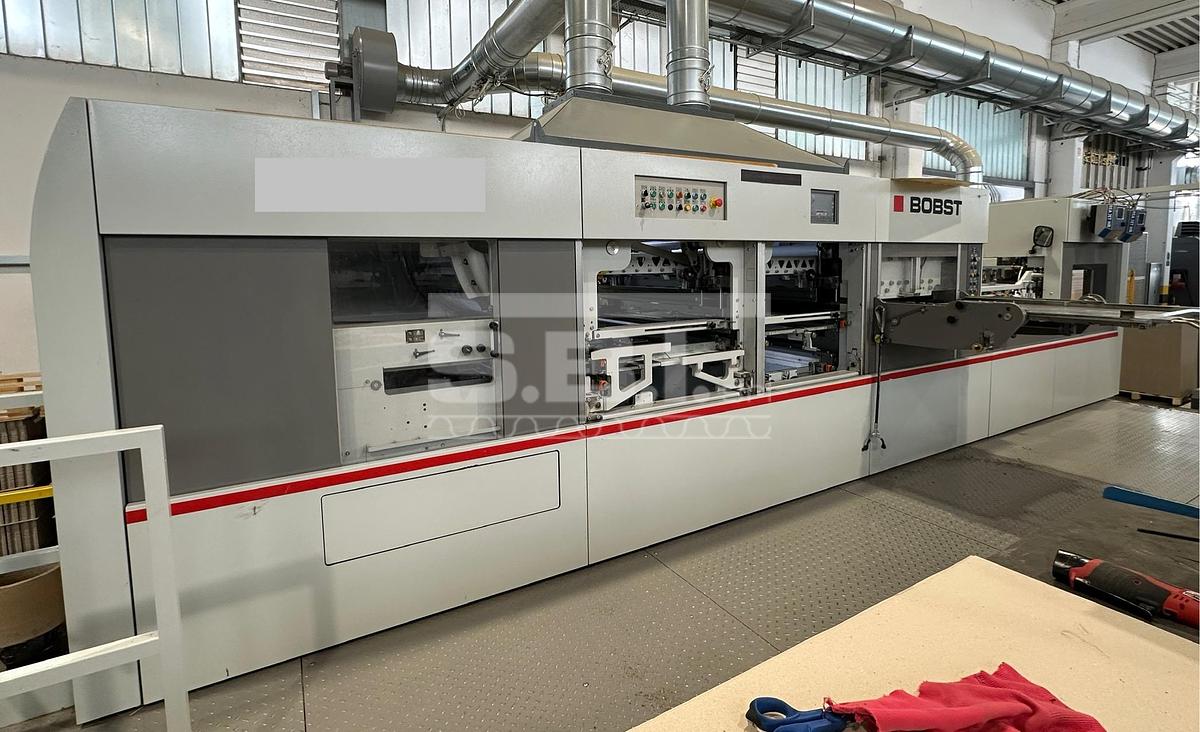

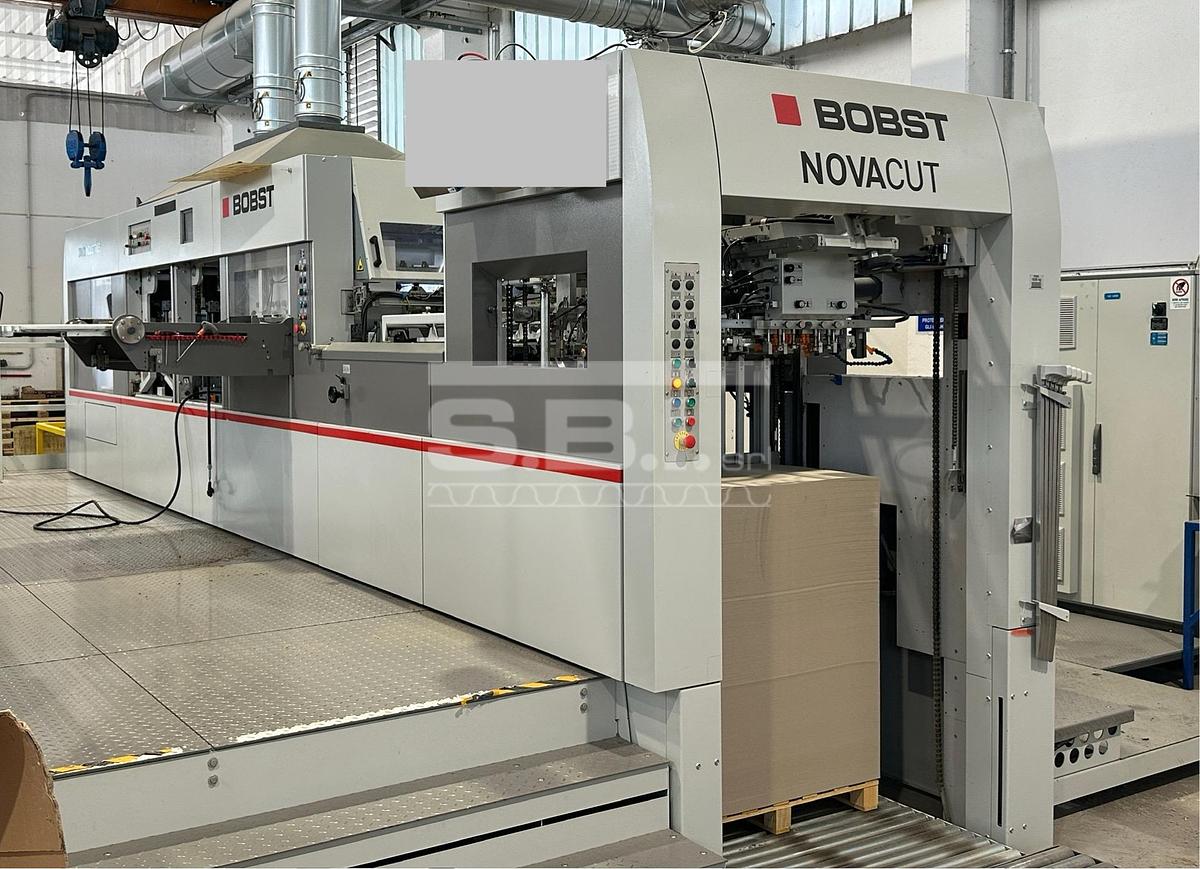

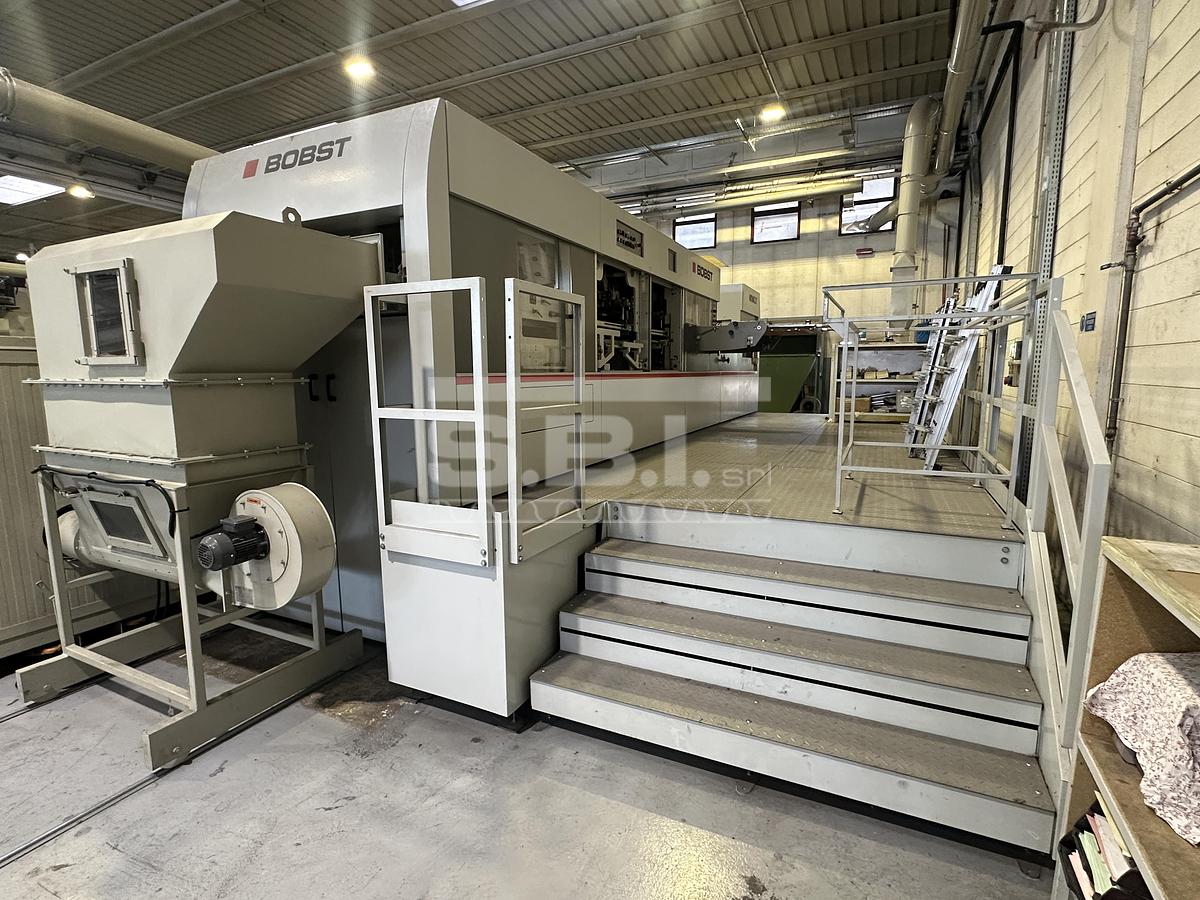

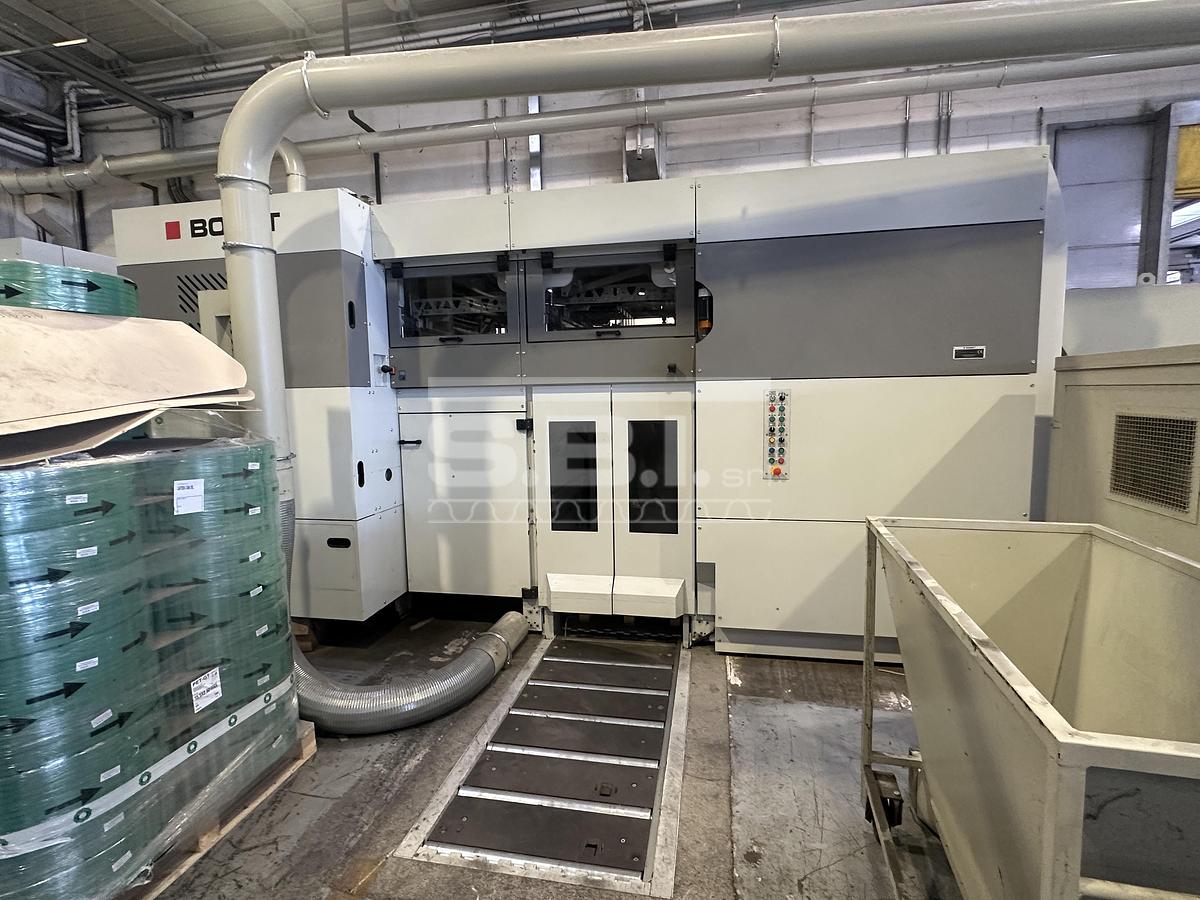

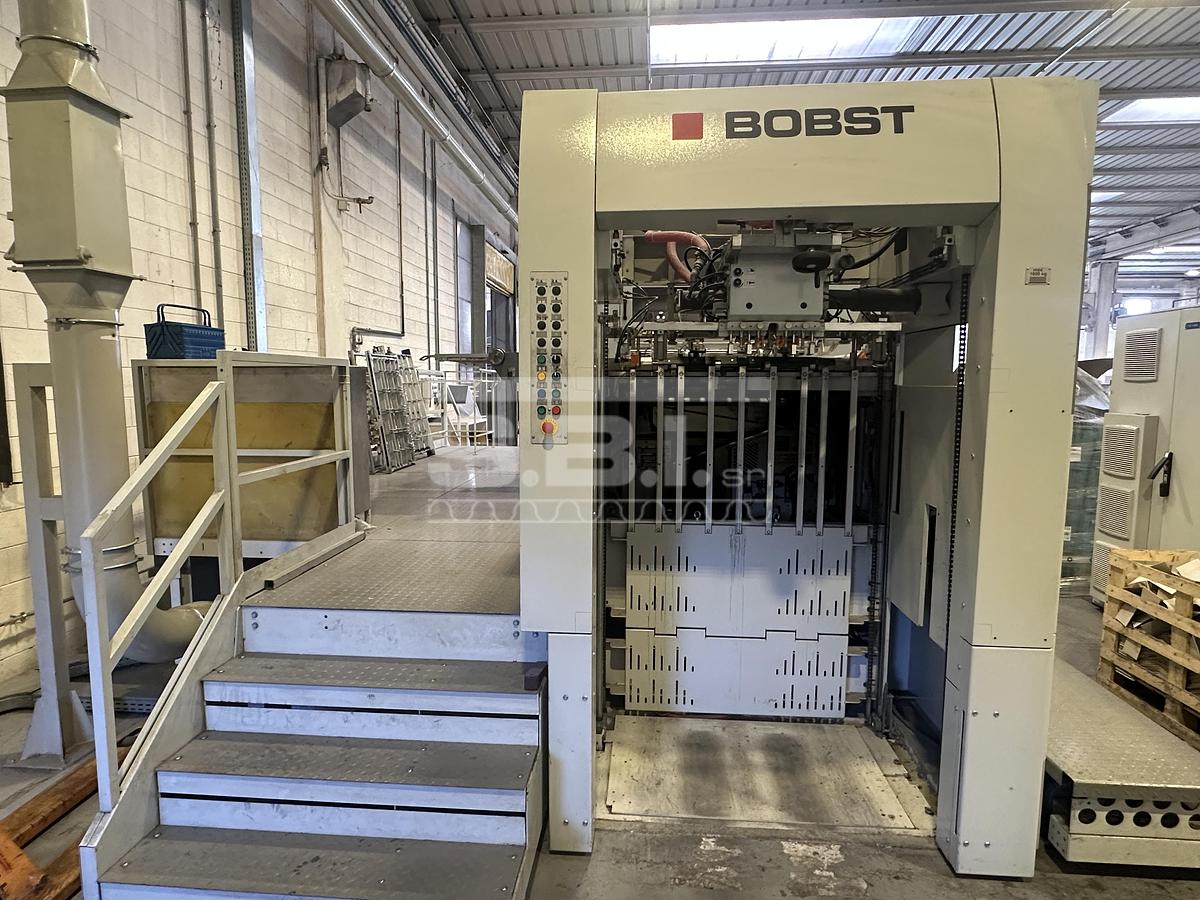

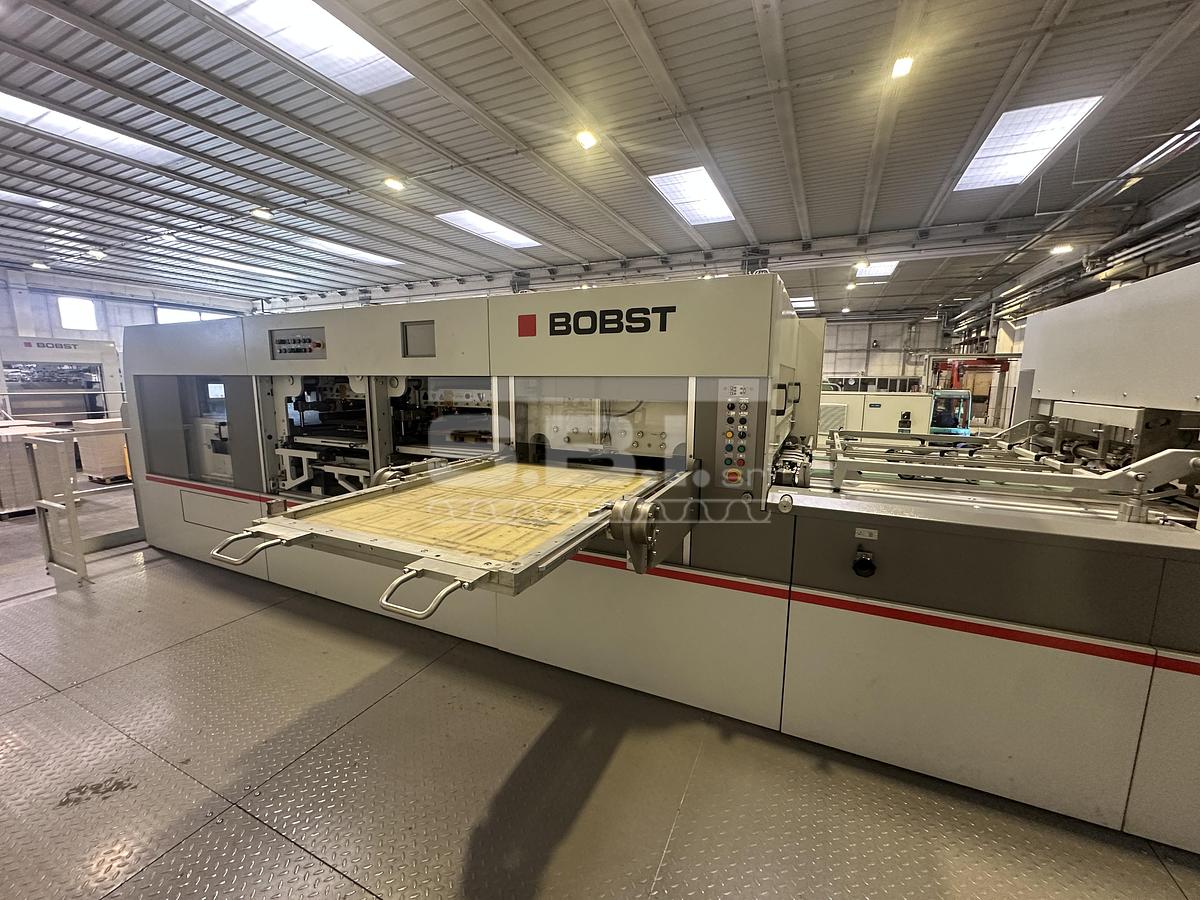

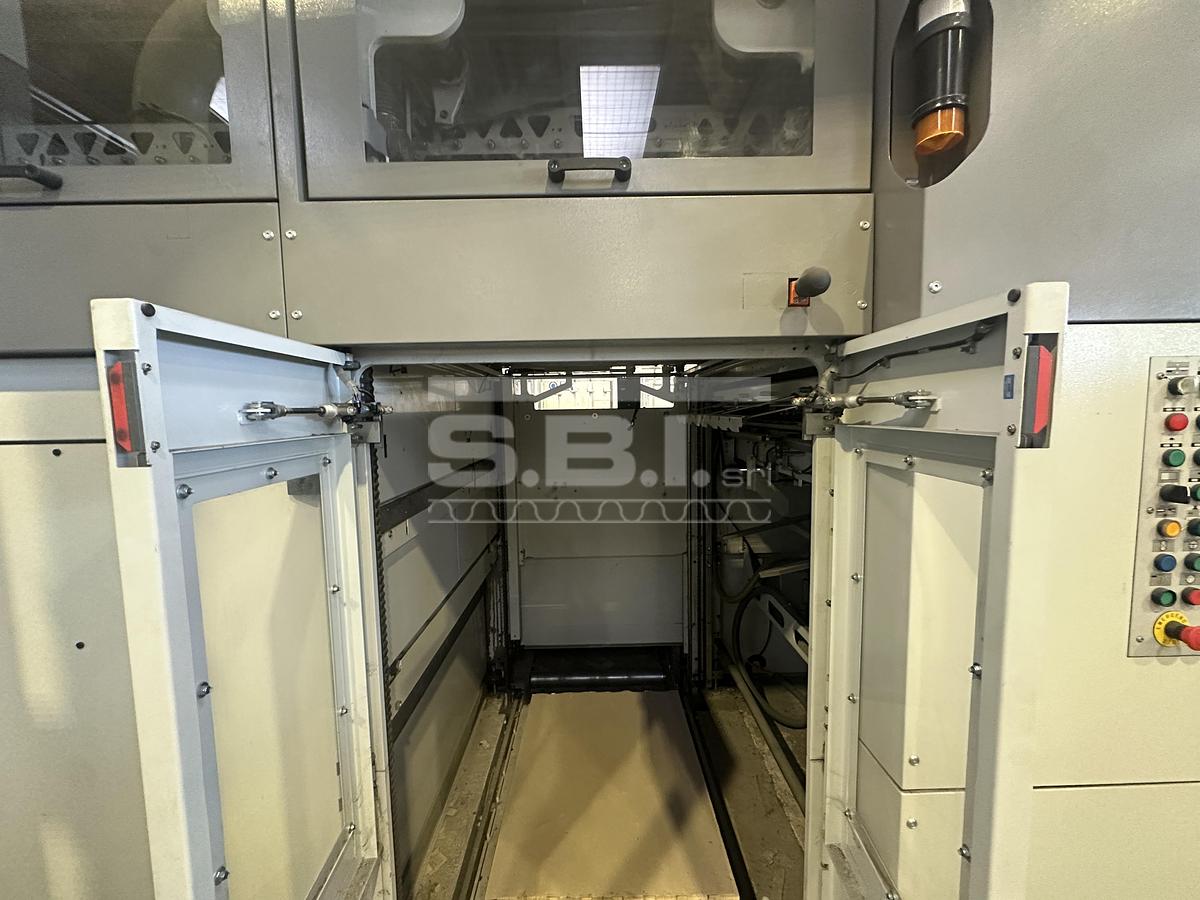

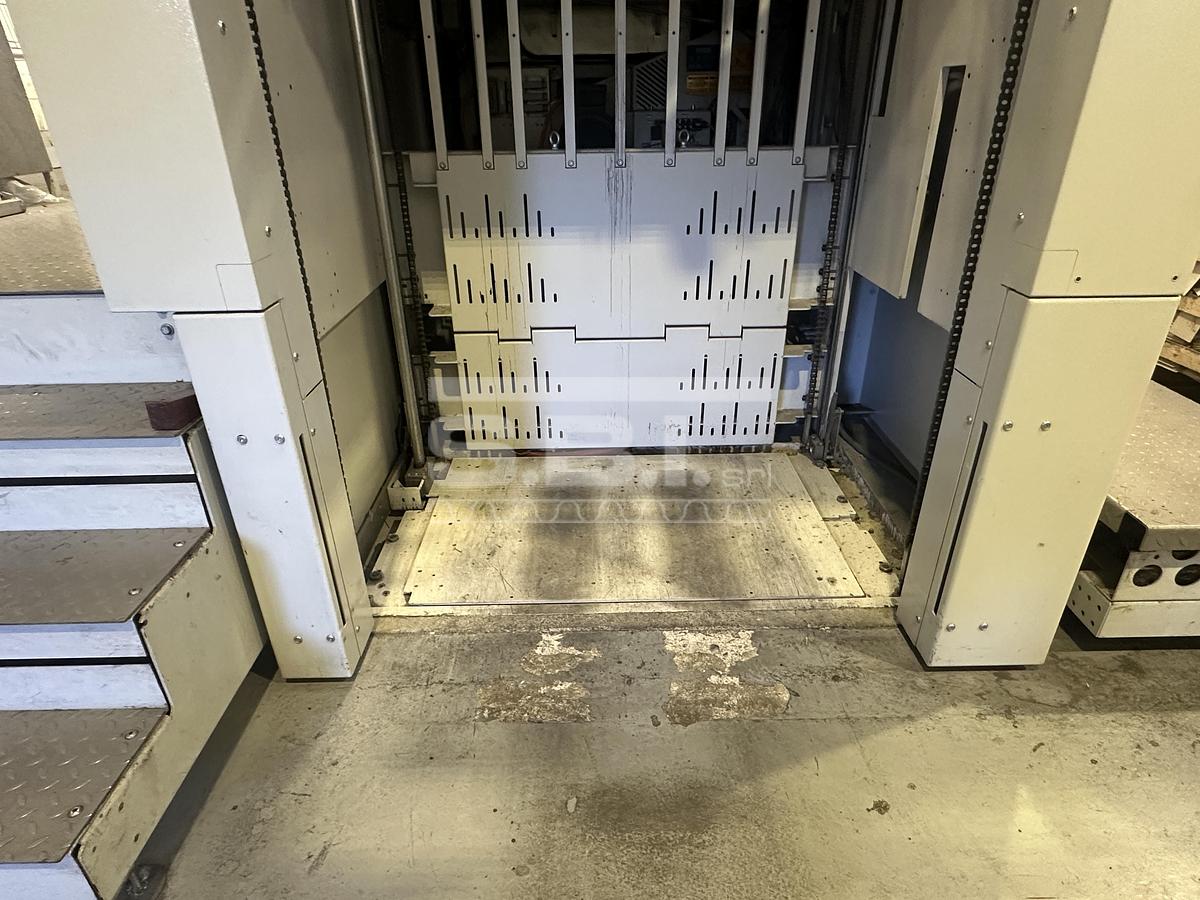

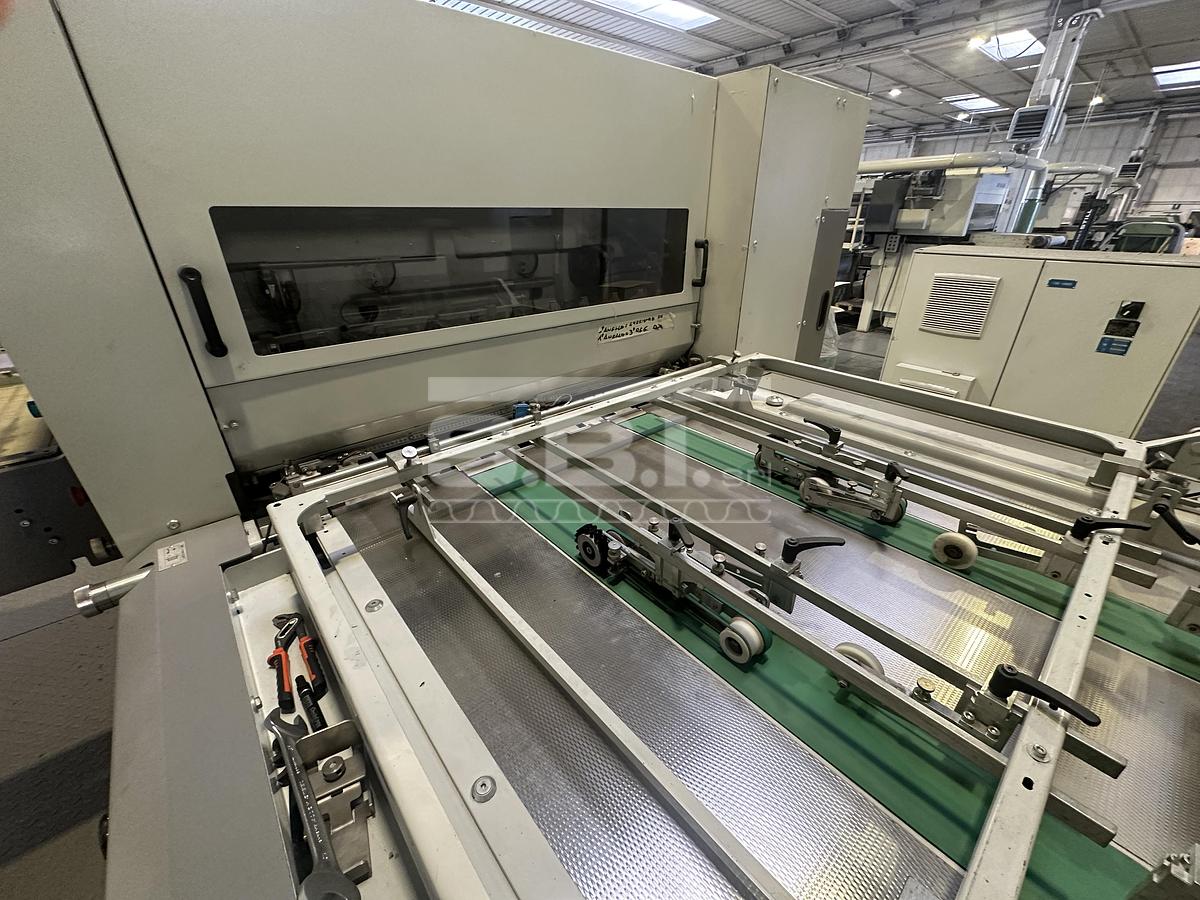

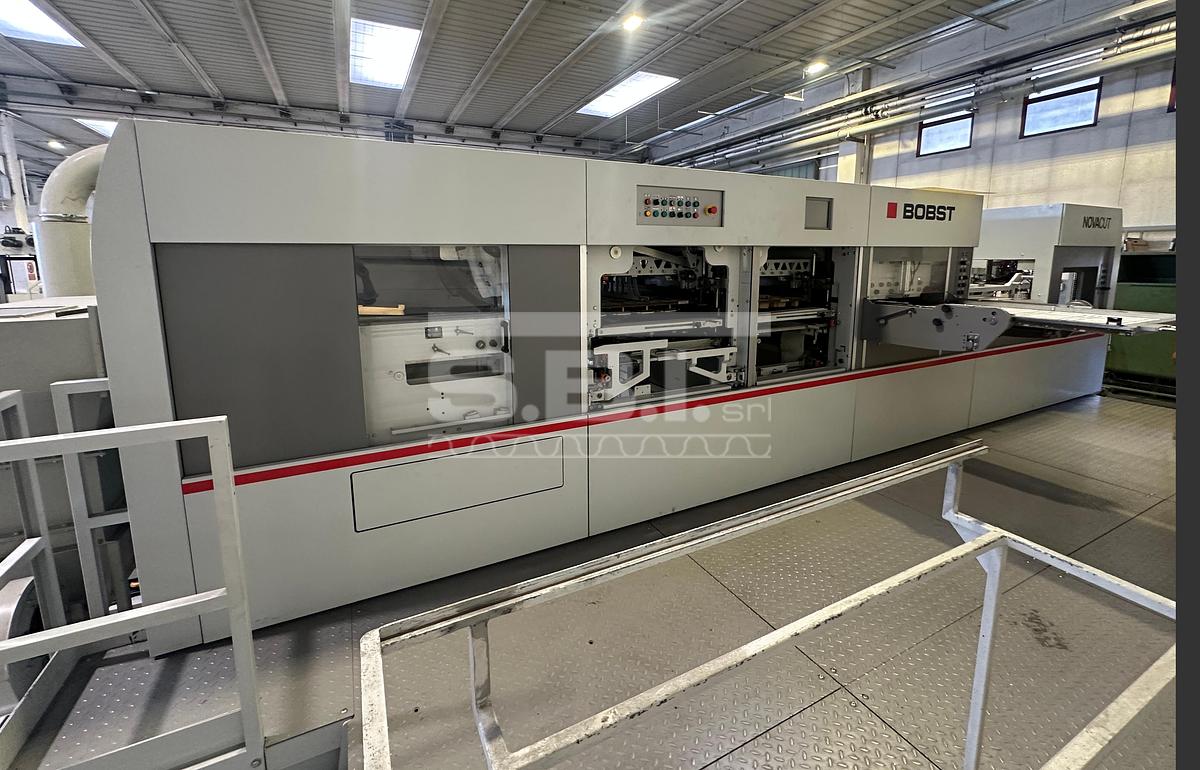

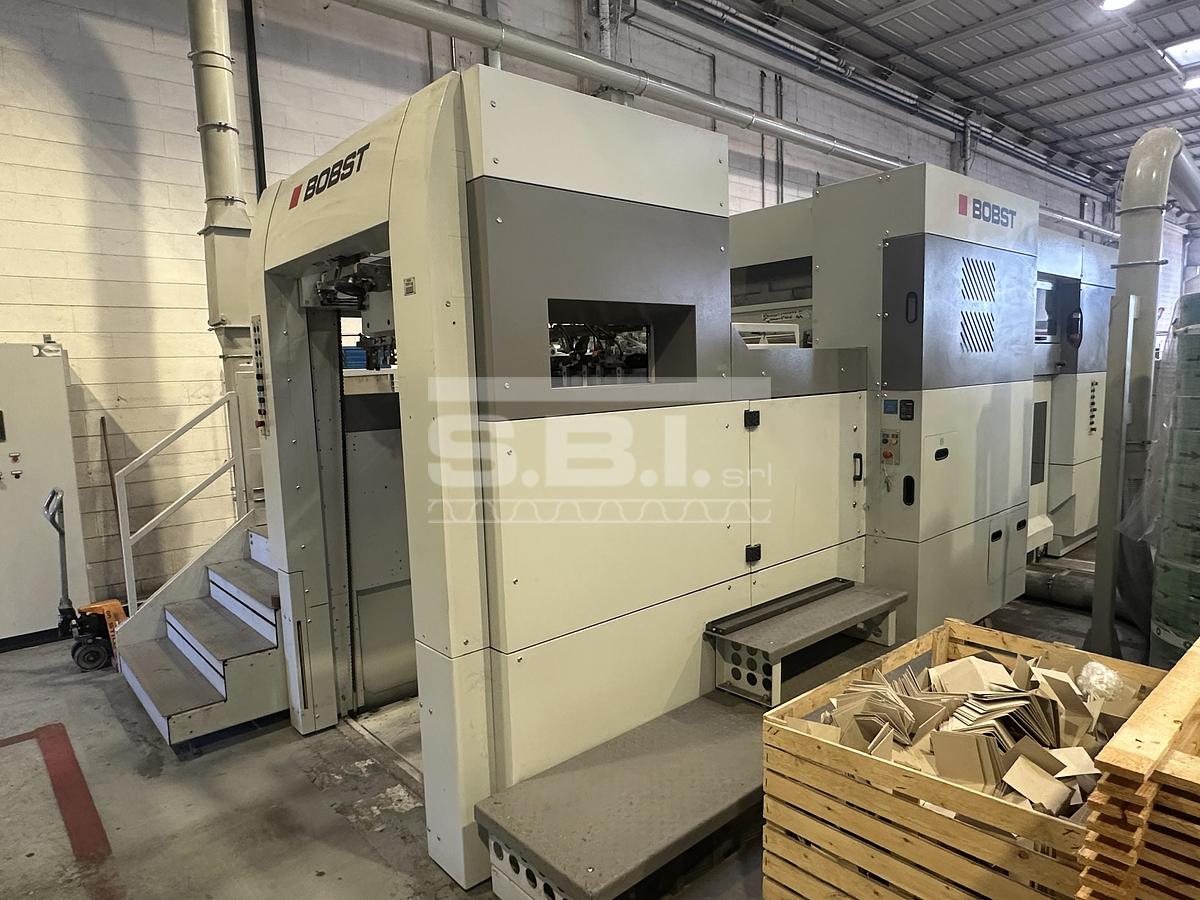

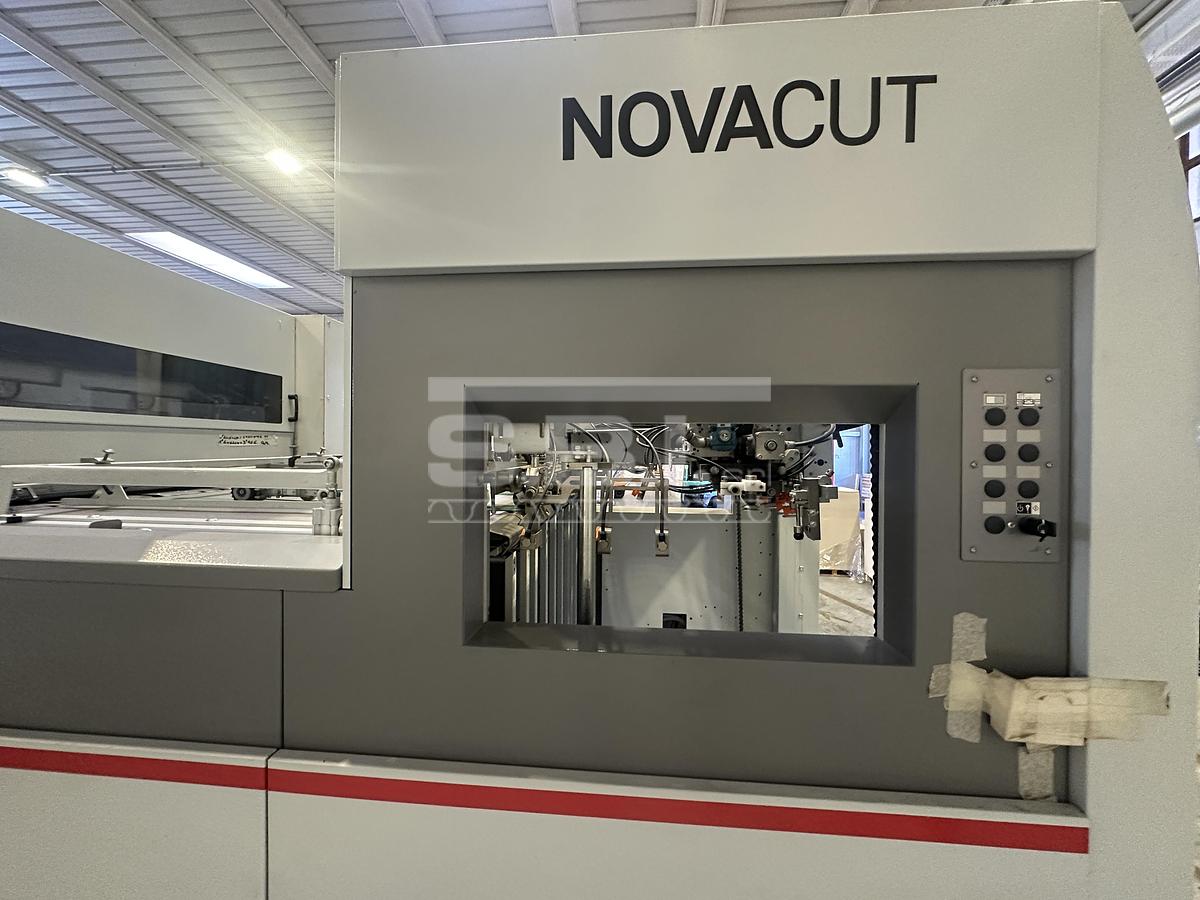

Bobst Novacut 106 ER

CARATTERISTICHE TECNICHE

MATERIALI LAVORATI

Carta (secondo la qualità), min                                                                                                                                                                  80 g/m2

Cartone (secondo la qualità), fino a (*)                                                                                                                                               2000 g/m2

Cartone ondulato (micro onda), fino a (*)                                                                                                                                                   4 mm

(*) Imbarcatura consentita del cartone: 4% della larghezza del foglio

FORMATI

Goffratura, max                                                                                                                                                                                1060 x 730 mm

Formato dei fogli, max.                                                                                                                                                                   1060 x 760 mm

Formato dei fogli, min.                                                                                                                                                                      400 x 350 mm

Fustella formato pieno, max.                                                                                                                                                         1070 x 770 mm

FORMATO DI FUSTELLATURA

Con rifilo frontale, max.                                                                                                                                                                  1060 x 746 mm

DIMENSIONE DEI BANCALI

Mettifoglio/uscita, max.                                                                                                                                                                1200 x 800 mm

FUSTELLATURA

Striscia di presa pinze                                                                                                                                                                                9 -17 mm

Altezza dei filetti di taglio                                                                                                                                                                           23,8 mm

Spessore doppio taglio                                                                                                                                                                                     5 mm

PRODUZIONE

Forza di fustellatura, max                                                                                                                                                             2.6 (260 t.) MN

Velocità orario, fino a (f/h)                                                                                                                                                                   7000

ALTEZZA DELLA PILA

Mettifoglio in posizione normale, max                                                                                                                                                  1820 mm

Mettifoglio in posizione Non-Stop, max                                                                                                                                                1520 mm

Uscita max                                                                                                                                                                                                    1550 mm
